Cutoff Blade

Redesigning and prototyping a new blade for conduit cutting in collaboration with Atkore.

Project Overview

Our team collaborated with Atkore to design a more efficient cutting blade. We simulated various profiles, analyzed stress patterns, and machined a physical prototype for validation. We used CAD and simulation tools to evaluate different blade geometries and material combinations. These visuals show the iterative design process and simulation insights.

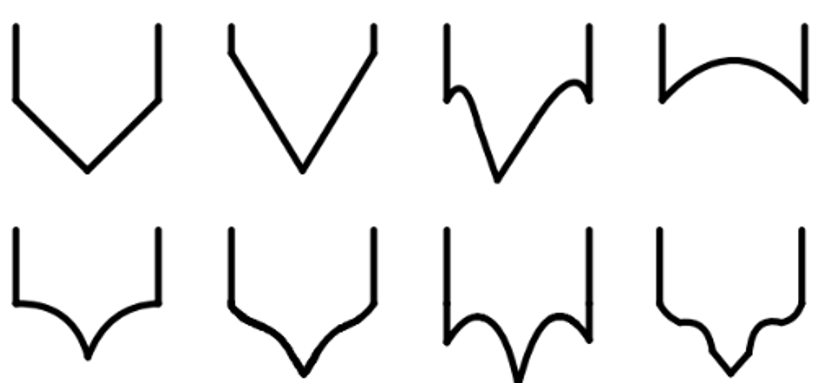

Comparing multiple blade designs
CAD model showing finalized blade profile
Machined aluminum blade prototype

Blade designs were modeled in Solidworks, then evaluated in Ansys to compare stress distribution and edge retention across different profiles and materials.

Simulation Showcase

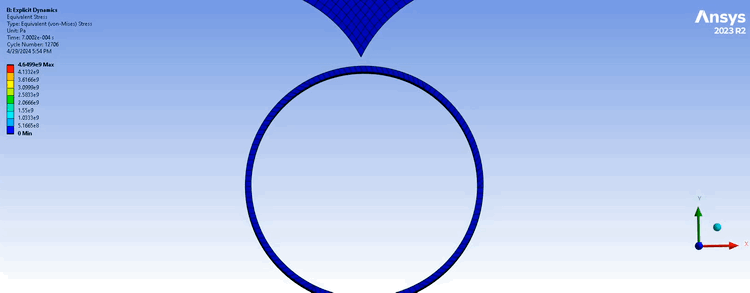

Animated simulation of blade stress testing

This animation shows simulation results generated with Solidworks and Ansys, analyzing deformation patterns during use.

Final Outcome

We finalized a new blade design using an optimized material profile and showcased the prototype to Atkore. We also built a base and prepared documentation to support further simulation refinement by future teams.
